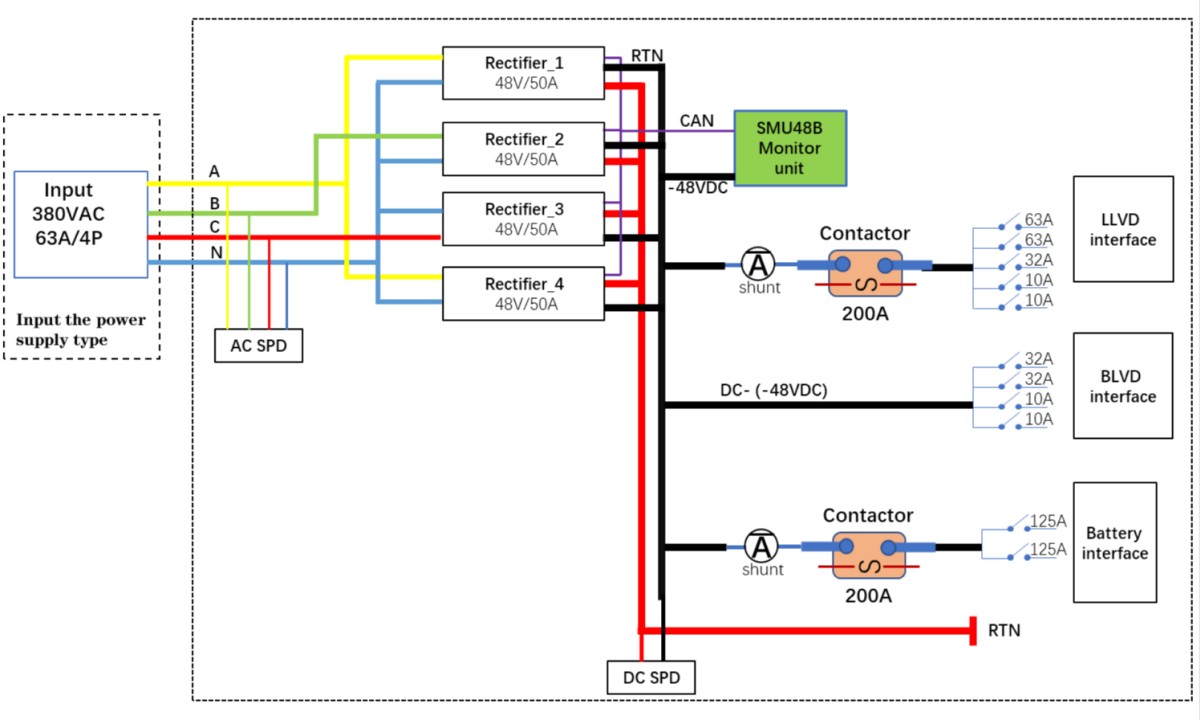

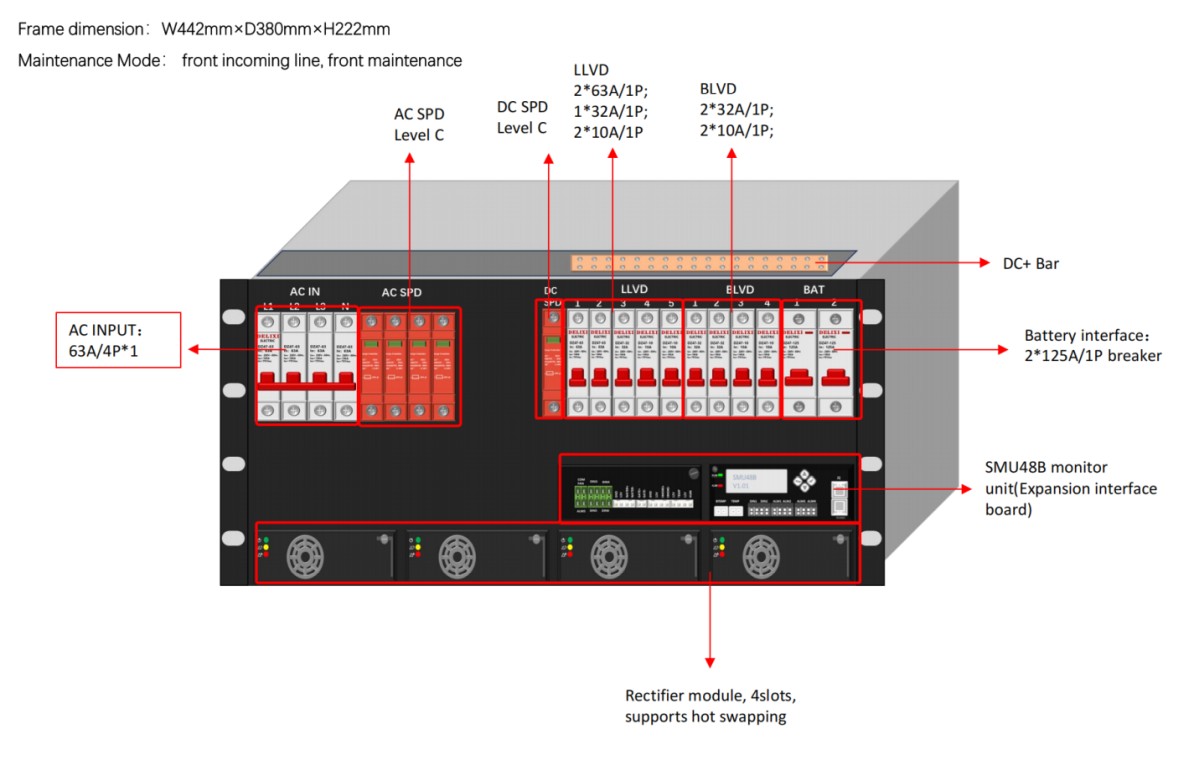

5U/200A Embedded Power System: 63A/4P*1 three-phase input; Class C lightning protection 3+1; Dc LLVD:63A/1P*2; 32A/1P*1; 10A/1P*2; BLVD:32A/1P*3; 10A/1P*1; Battery 125A/1P*2; Dc lightning protection 20KA/1P; Four module slots;

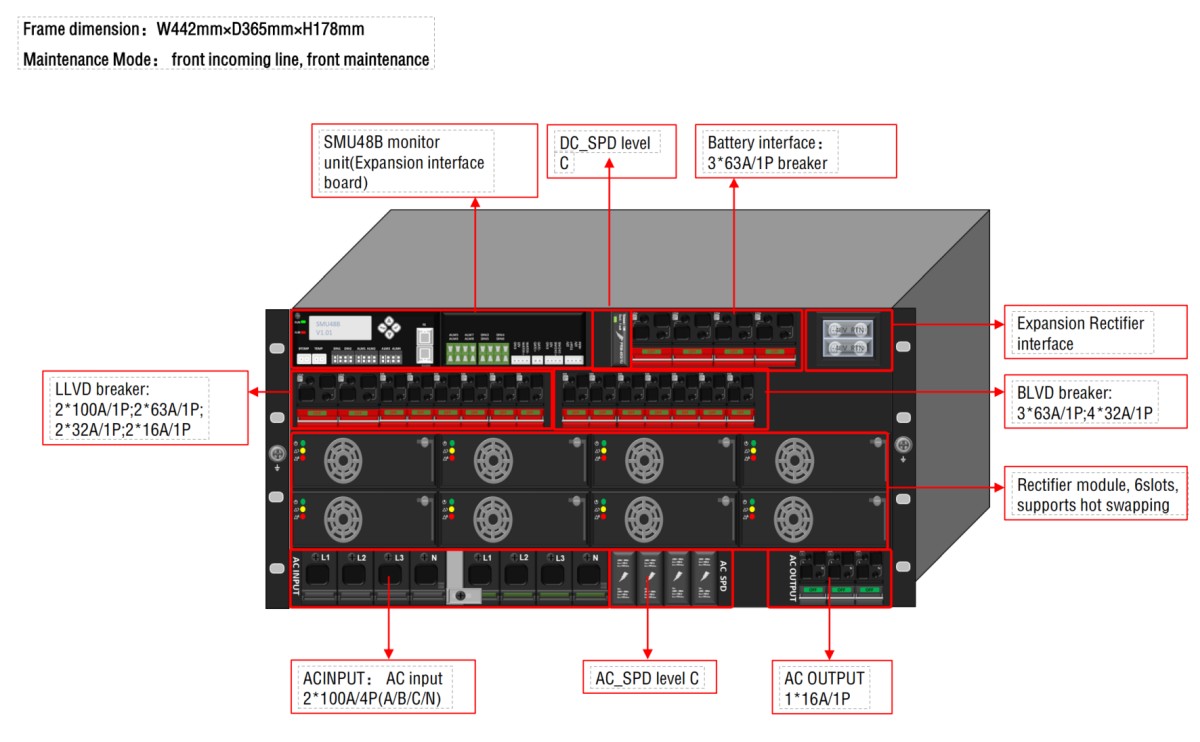

5U/400A Embedded Power System : three-phase input 100A/4P*2, C-level lightning protection 4P; Ac output 16A/1P*3; Dc LLVD: 100A/1P*2,63A/1P*2,32A/1P*2,16A/1P*2; BLVD:63A/1P*3,32A/1P*4, battery 125/1P*4, DC lightning protection 40KA/1P; Expansion terminal 250A, 8 module slots.

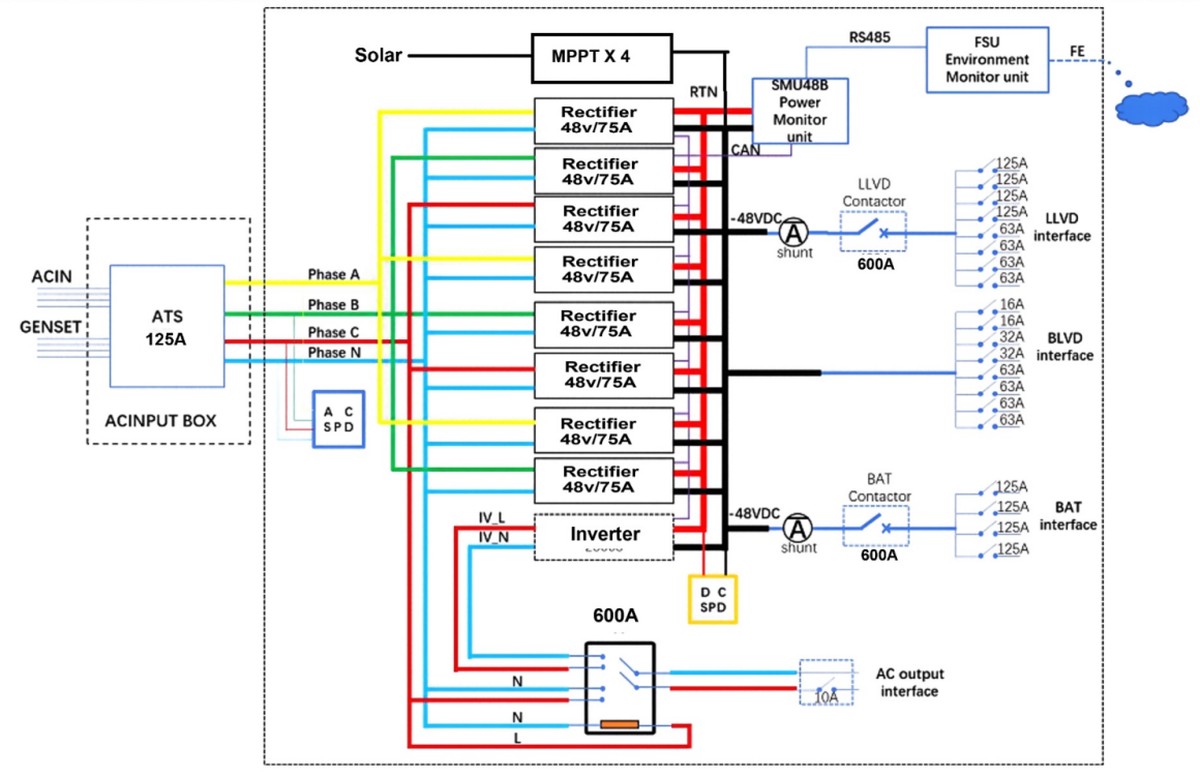

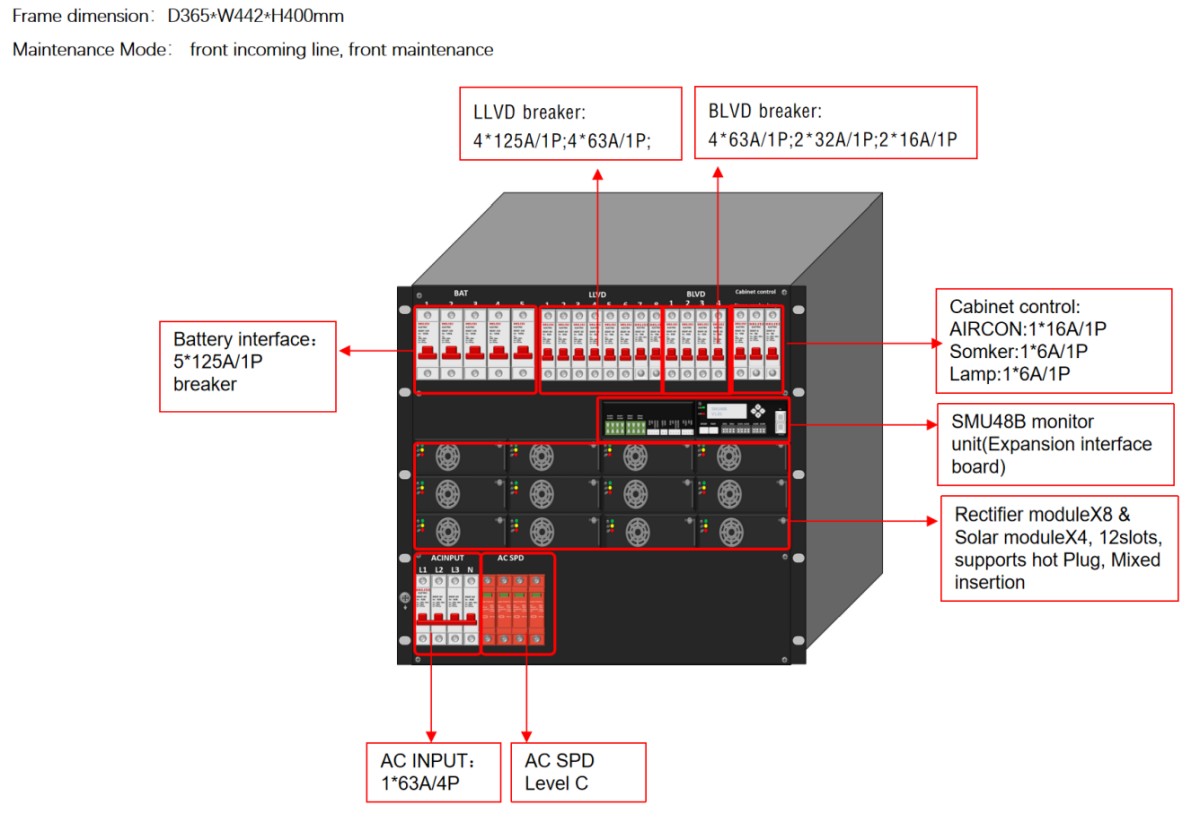

9U/600A Embedded Power System : three-phase input 125A/4P*1, Level B surge protection, LLVD: 125A/1P*4,63A/1P*4; BVLD: 63 A / 1 p 1 p * 2.16 * 4, 32 A/A / 1 p * 2; Battery 125A/1P*5, photovoltaic input DC500V/32A/2P*4; Photovoltaic lightning protection 40KA/2P*4; 12 slots (4 PV modules +8 rectifiers) with monitoring system.
